Yarns

CABLE FILLER YARNS

PP-YARNS

Polypropylenyarns as economic solution for filling up spaces in cables of all kind.
PP yarns are hydrophobic and free of halogens.

Twisted from fibrillated tapes
Multiple-ply ropes, 3 or 4 strands
Optional flame retardant and halogen-free
As BCF-yarn available (texturized)
on spools and drums

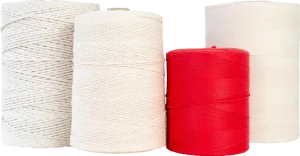

COTTON-YARNS

Cotton Yarns and Cords will be used commonly as cable filler because of its good thermal properties.

0,6 – 16,0 mm twisted Diameters
100 % cotton or as cotton-mixed yarn (85 % Cotton/15 % Synthetic)

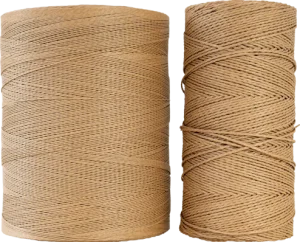

PAPER-YARNS

Paper Yarns from natron kraftpaper are heat-resistant and will be used as filler-yarns in power cables.

Diameters
from 0,20 – 10,0 mm
Different yarn
constructions possible

RIPCORDS, BINDERYARNS AND WB- YARNS

POLYESTER + POLYAMIDE

Polyester and Polyamide yarns and threads will be used in many different cable designs as ripcords or binder yarns.

All types in linear density and yarn constructions
High tensile strength and excellent cutting properties
Low until “ultra low” shrinkage (0,5 %) available

ARAMIDE / VECTRAN

Aramide and Vectran yarns offer highest values in tensile strength and are first choice for ripcords which must cut thick-wall- or metallic materials.

Highest tensile strength and best cutting
properties
From 440 dtex up to 8.050 dtex,
as Roving or twisted (s/z)
Any customer-required constructions
possible
PU-coated or dyed in any color
optionally waterblocking

WATERBLOCKING YARNS

Waterblocking Yarns will be used in different cable designs for longitudinal watertightness as flat binderyarn or as round and thick filleryarn.

As flat polyester-multifilament yarn with super absorbent polymers
As round polyester spun-yarn with swelling fibres
Low-dust during processing
Extremely high swelling properties (up to 50times)

STRENGTH MEMBERS

TEXTILE GLASS YARNS

Textile Glass yarns, as EC9 or EC11 Glass, for braiding and armouring,

34tex – 300tex

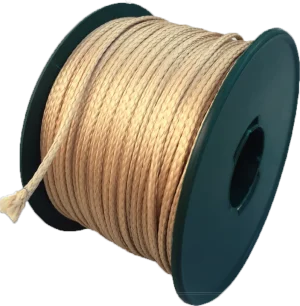

ARAMID BRAIDED CORDS

Braided Cords + Threads from Aramid, as filler + flexible strength members

0,5 mm – 8,0 mm
Soft + flat braiding
or hard + round
braided cord
optional the yarn can be delivered coated
or waterblocking
